Membrane Switch Tail Test Clamp Jig
Easy Membrane Tail Connection

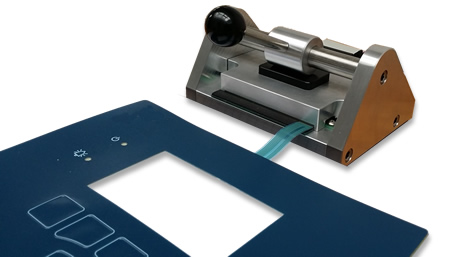

The B831J membrane switch test clamp is a quick way to connect to the tail of a membrane keyboard. The interface is suitable for products designed to be used with a ZIF socket. It can also be used to test a bare membrane keyboard tail before a pin connector is attached. There are four easy to change interface boards for 2.54 mm, 1.25 mm, 1.00 mm and 0.5 mm tails.
This compact jig is precision made in the UK and very easy to use. It has many advantages over a ZIF socket, it is simple, effortless and much faster to use and without marking or damaging the tail unlike a ZIF connector which can easily scratch or make indentations on a silver or carbon tail. This test jig can also be used for testing parts designed to work with FPC and FFC connectors.
- Simple and quick to use.
- Aluminium & Steel construction.
- Smooth effortless cam lever operation.

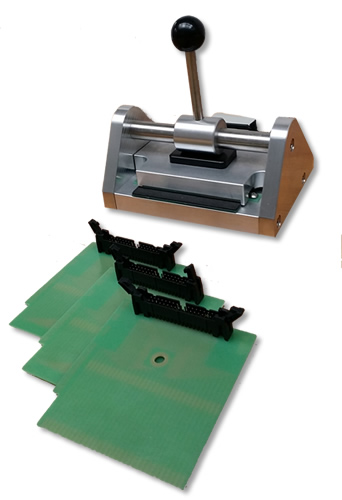

- Interchangable interface boards (2.54mm, 1.25mm, 1.0mm and 0.5mm pitch).
- Connects up to 32 points.
- Easy and fast connection to the membrane tail - Hassle free alignment / registration.
- Size approximately 150mm x 110mm x 82mm (W x D x H)
As Easy As This To Use
 |
 |
 |
Ready for membrane |
Insert Tail |
Slide fully to the right, pull the leaver and now test |
* Can be connected and used with other membrane test systems - (Please enquire for FREE interface convertor)
Click for a Free Quotation
Part No |
Description |
B831 - 32 |
32 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 64 |
64 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 96 |
96 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 128 |
128 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 160 |
160 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 192 |
192 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 224 |
224 lines "Darren" Membrane Switch Tester (5-Year GT) |
B831 - 32-HV |
32 lines "Darren" Membrane Switch Tester (12V / 28V test voltage) NEW (5-Year GT) |
B831 - 100 |
2.54 mm pin Interface adaptor board |
B831 - 105 |
1.25 mm ZIF Interface adaptor board |
B831 - 110 |
1.0 mm ZIF Interface adaptor board |
B831 - 115 |
0.5 mm ZIF Interface adaptor board |
B831J * |
Membrane Tail Test Clamp Jig (Excl. Interface adaptor board) |
B831J - 300 |
Test Clamp 2.54 mm pin Interface adaptor board |
B831J - 305 |
Test Clamp 1.25 mm ZIF Interface adaptor board |
B831J - 310 |
Test Clamp 1.0 mm ZIF Interface adaptor board |
B831J - 315 |
Test Clamp 0.5 mm ZIF Interface adaptor board |
B831J - SET |
Set of four Interface adaptor boards 2.54 mm, 1.25 mm, 1.00 mm and 0.5 mm |
B831 - 500 |
Label Printer |
 |
5-Year GT Product marked (5-Year GT) have a 5 Year Banair Guarantee. Click here for more details. |
