B886 "Simon" Life Cycle & Switch Bounce Test System

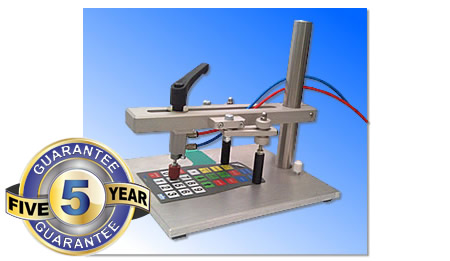

Life Cycle Tester


The B886 Simon System has been designed for life cycle and fatigue testing of switches, membrane switches, keyboards and keypads. It system contains all the components needed to life and fatigue test a wide range of components (Control Unit, test fixture, power supply, pneumatic cylinder & Hoses, silicone test probe, USB lead, Windows software and instruction manual).



How easy is it to use?

Simply decide on the force required, enter the resistance values, the number of cycles and product name then push start. There are lots of other things that you can set or adjust but for many tests the default values that Banair have already entered for you will be fine. When the test is completed the results will be stored in an Access database and you can print out a test certificate.

Now, simply put the product in the jig and place the probe over the switch to be tested.


How long will the test take?

The typical membrane specification calls for 1 million operations. If you set the system for 4 cycles per second then this would take just under 3 days.(4 cycles x 60 seconds x 60 minutes x 24 hours x 3 days = 1,036,800 cycles) You may need to adjust the cycle time depending on your requirements. The test time for 1 C/S would be just under 12 days. (Testing Specification ASTM F1578-01, ASTM F1578-07, ASTM F1578-96)



What else do I need to get started?

1. A PC or laptop running Windows and a free USB socket. Microsoft Office will help you analyse and print your results but you can perform standard tests without this.

2. An air supply (Max 6 bar).

3. A product to test.

Everything else is included for you to start testing straight away.



Why is it called "Simon"?

We like to give our equipment names as you might have noticed, why do we do this, well, as you will find out, they will soon become part of your team, just like a new work colleague.

Life cycle tester
B886-A System


Features


Bullet point
Adjustable force between 200g and 3500g
Bullet point
Vary speed up to 10 cycles per second depending on configuration
Bullet point
Measure switch resistance each cycle 1 to 10,000 Ohms
Bullet point
Measure switch bounce in mS
Bullet point
Log results to an Access database
Bullet point
Print a certificate in your own format, using a Word template
Bullet point
Stop on failure or choose to continue with a warning screen
Bullet point
Pause at any time to check physical condition of switch, then resume. Simon will still remember your results
Bullet point
Display activation's per hour
Bullet point
Display the total time elapsed, adjusted for pause time
Bullet point
Save part number, serial number and customer details to a database and a certificate
Bullet point
Display the change in contact resistance
Bullet point
Adjustable test current
Bullet point
Adjustable probe height 0 to 150 mm
Bullet point
Adjustable probe position 0 to 120 mm range
Bullet point
Fully adjustable membrane position using two retractable clamps
Bullet point
Standard rubber probe 15 mm diameter



Switch Bounce Testing

Nearly all switches will generate some "bounce" when they are operated (switched). Every time they are operated, they will actually open and close their contacts several times before they settling down to their new position. For normal switches, this can last from as little as a fraction of a millisecond (ms), to as long as several milliseconds. Only very high quality switches generate little or no bounce. This switch bounce is not usually a problem if you are merely turning on something simple like a light, but if you are working with more sensitive things like logic devices, all these extra bounces can create havoc. An example of a problem would be that if every time you pressed a button to increment a counter you actually added several counts to the total.


How do I set up the system?

Connect the switch to the connector on the front of the tester. Select the required resistance range.

Resistance Range

Push the switch and the tester will display the resistance. This will confirm the switch resistance and allow you to determine the bounce threshold.

measured resistance

Once you know the resistance when the switch is closed then you can determine the bounce threshold. Enter this as “Resistance Spec Ohms”. You can also enter the serial number, Part Number and customer details to be saved in the results and printed on certificates.

Specification details



How do I carry out the test?

Click Keybounce and then push the switch and release it. A graph will then appear of the screen and the rise and fall bounce times will be measured and displayed.

The results can then be stored in an Access database. The system can also be supplied with the ability to save the results to an Excel spreadsheet.

SAVE TIME - Operate up to 8 cylinders at the same time!

The standard B886 Simon system has a single switch input that measures the resistance of the switch, there is also the option of up to 8 digital inputs for systems where multiple fingers are required but without the need of resistance measurement. When using this option all of the cylinders / fingers will operate at the same time via a manifold .




Features


Bullet point
Measures switch bounce in mS
Bullet point
Log results to an Access database
Bullet point
Print a certificate in your own company format, using Word template.
Bullet point
Save part number, serial number and customer details to a database and a certificate
Bullet point
Display the contact resistance
Bullet point
Adjustable test current



System Components


Bullet point

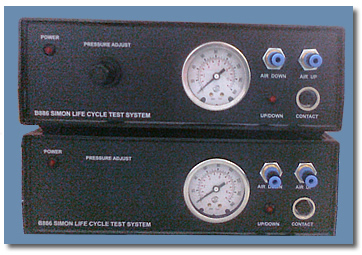

Control Unit (1 Channel)     (Optional 8 digital Channels)
Bullet point
Standard test Fixture (Jig)     (Optional)
Bullet point
1 Cylinder (finger) and Hoses
Bullet point
Power Supply 24Vdc (110V - 240Vac)
Bullet point
USB Cable
Bullet point
Operating Instructions
Bullet point
User Friendly Windows® Application Software (Windows XP, Vista, 7, 8 and 10)



Click for a Free Quotation

Part No
Description
B886-M
Manual Adjust Life Cycle Tester - (Incl. Test Fixture)           (5-Year GT)
B886-A
Automatic Adjust Life Cycle Tester (Incl. Test Fixture)            (5-Year GT)
B886-M8
Manual Adjust Life Cycle Tester with 8 digital inputs (Incl. Test Fixture)         (5-Year GT)
B886-A8
Automatic Adjust Life Cycle Tester with 8 digital inputs (Incl. Test Fixture)     (5-Year GT)
  Extended Temperature Versions Available ( -40 C and +150 C ) Please Enquire

B886-M-EF
Manual Adjust Life Cycle Tester (Excl. Test Fixture)            (5-Year GT)
B886-A-EF
Automatic Adjust Life Cycle Tester (Excl. Test Fixture)            (5-Year GT)
B886-M8-EF
Manual Adjust Life Cycle Tester with 8 digital inputs (Excl. Test Fixture)       (5-Year GT)
B886-A8-EF
Automatic Adjust Life Cycle Tester with 8 digital inputs (Excl. Test Fixture)    (5-Year GT)
  Extended Temperature Versions Available ( -40 C and +150 C ) Please Enquire

B886-SF
Standard Single Finger Adjustable Test Fixture

B886-RF15
15mm Rubber (Silicone) Finger
B886-RF8H
8mm Rubber (Silicone) Finger + Metal housing
B886-RF8
8mm Replacement Rubber (Silicone) Finger
B886-RF9H
9mm Rubber (Silicone) Finger + Metal housing
B886-RF9
9mm Replacement Rubber (Silicone) Finger
B886-PTFE10
10mm PTFE Finger

5 Year Guarantee
5-Year GT
Product marked (5-Year GT) have a 5 Year Banair Guarantee. Click here for more details.
