B328 "Thomas" Projectile Speed Tester



Projectile Test System

The B328 "Thomas" Projectile Speed Test system is designed to allow easy measurement of the flight speed of a wide range of toys that fire projectiles.

This test equipment will help manufacturers, trading standards, consumer bodies, CPSC, CPSIA laboratories and regulatory authorities to check that they meet the requirements of ASTM F963 - 08 Standard Consumer Safety Specification for Toy Safety and ISO 8124-1:2009 projectile Safety of Toys –Part 1:Safety aspects related to mechanical and physical properties. It may also be valuable for certain sports equipment and related tests.

The projectile is fired between two gates consisting of pairs of optical sensors and the transit time is measured and sent to the supplied Windows software.

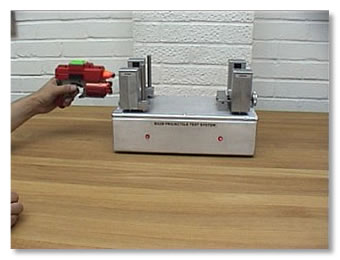

Projectile Tester - Firing a Toy Gun

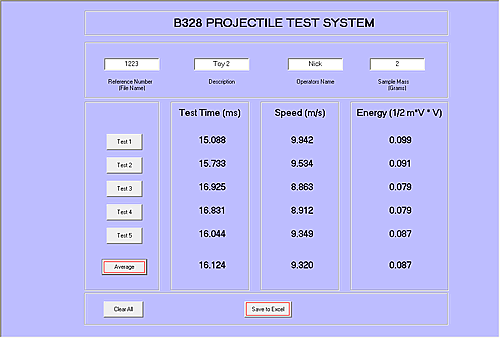

The transit time of each test is displayed on screen together with the speed measured from this time.

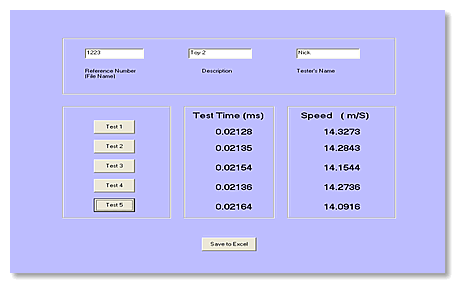

Test Result

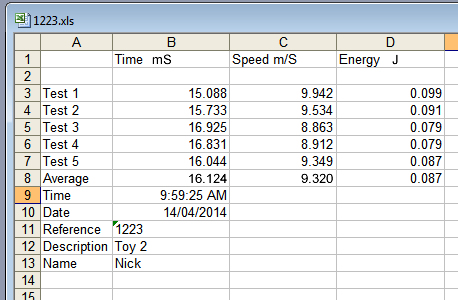

It will also save a Reference number, Description, the tester’s Name, the Time and the Date. Five tests can be shown together on the screen and then transferred directly to an Excel Database.

The height of the first gate can be adjusted to allow for the drop of the projectile due to gravity. Two mounting points (M5 bolts) are provided to allow the fitting of a custom support jig.

Projectile Tester - Support jig

The position of the second gate can be adjusted to calibrate the measured distance.

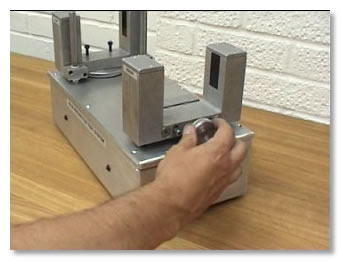

Projectile Tester adjustment



NEW MODEL - Compact Size

The new B328-C is a compact version of theoriginal model but measures over a distance of 150 mm.



B328-C

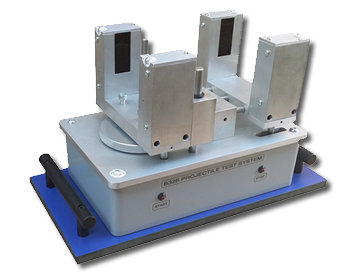

B328-C (Compact Model)

Specifications


Bullet point
PC Platform: Windows 2000, XP, Vista, 7 and 8
Bullet point
Power supply: External 9V DC power supply is provided. Power supplies 90 to 260 V AC.
Bullet point
Transit time: 10mS to 2 Seconds.
Bullet point
Flight time: 30 m/S to 0.6 m/S
Bullet point
Toy support mount: Two mounting holes are M5 50mm centres.
Bullet point
Calibration Distance: Measured calibration piece supplied.
Bullet point
Calibration Time: Time is calculated from a crystal controlled oscillator.
Bullet point
Connections: USB
Bullet point
Measurement Distance: 305mm or 150mm Models
Bullet point
Software: Windows interface (future upgrades FREE), all data is stored in Excel format
Bullet point
Warranty: 1 year parts and labour
Bullet point
Support: Lifetime free telephone support



Click for a Free Quotation

Part No
Description
B328
"Thomas" Projectile Speed Tester (305 mm measurement Distance)
B328-C
"Thomas" Projectile Speed Tester (150 mm measurement Distance)



Click for a Free Bespoke Quotation

Custom specification tests systems available to order.
